Little Giant HT-6EN-CIA-SFS, 115 Volt, 1/3 HP, 3540 GPH High Temperature

Little Giant HT-6EN-CIA-SFS, 115 Volt, 1/3 HP, 3540 GPH High Temperature Automatic Sump, Utility, Effluent Pump with Integral Mechanical Float Switch, 15-Ft. Cord, Blue, 506602

Brand Little Giant

Color Blue

Material Cast Iron

Style Mechanical float switch, 15-ft. cord

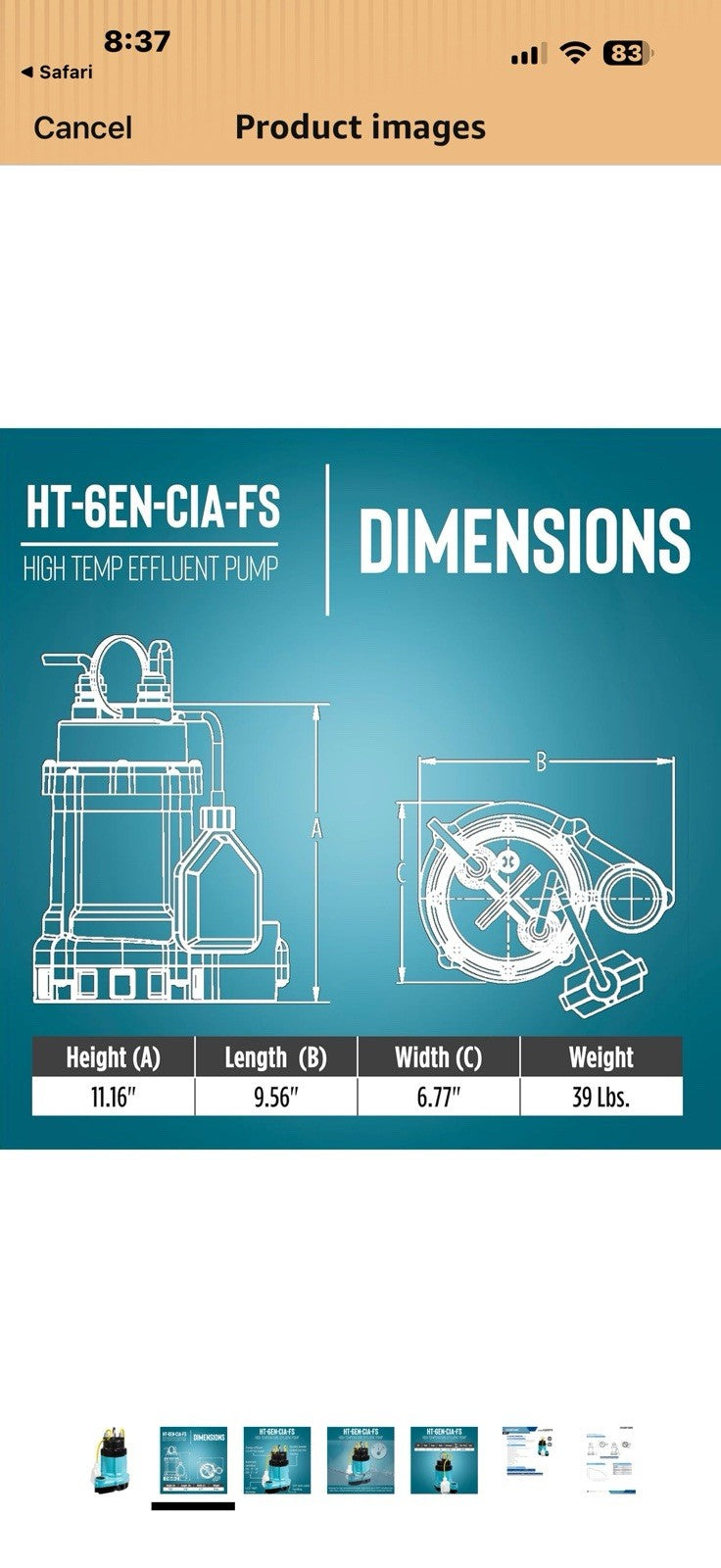

Product Dimensions 9.56"L x 6.77"W x 11.16"H

Power Source Corded Electric

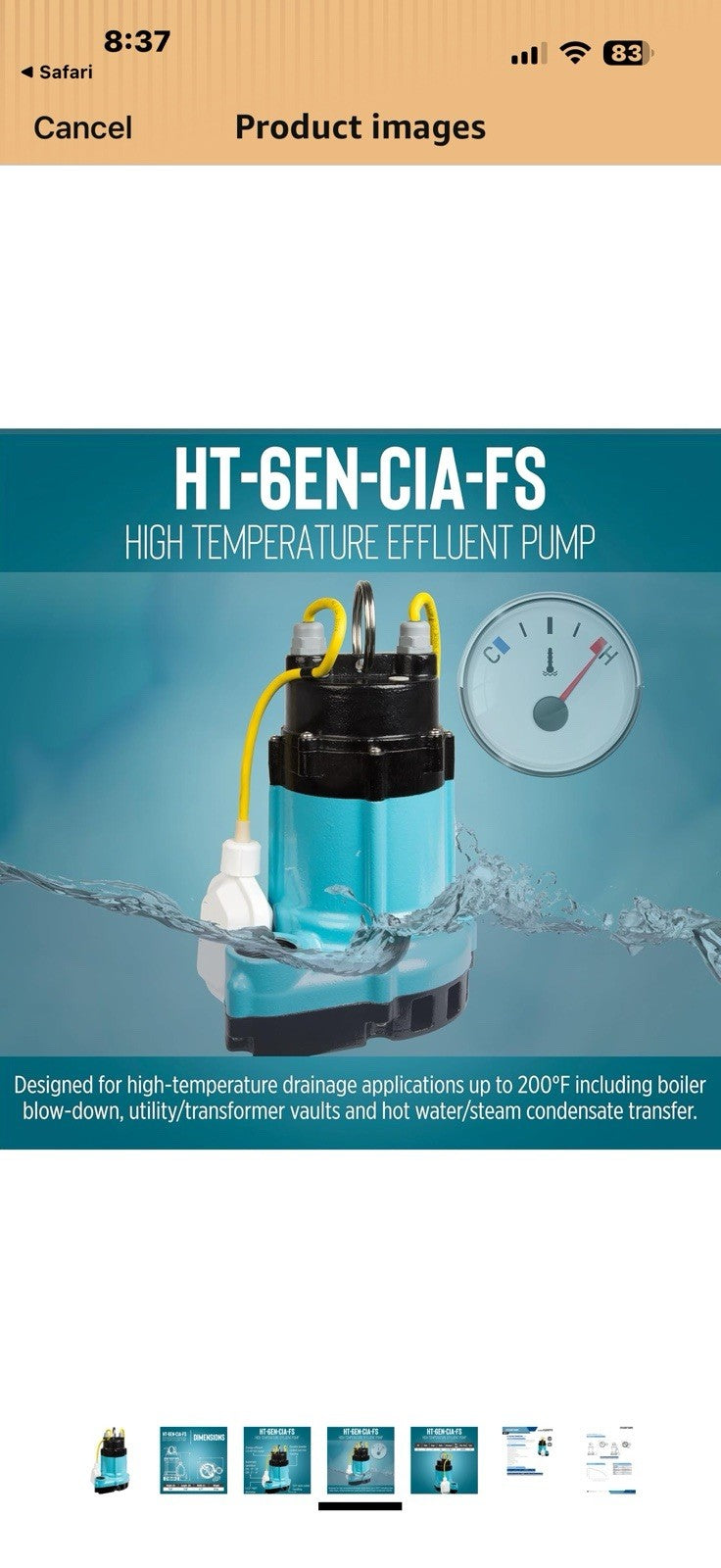

APPLICATIONS: ideal for high temperature drainage tasks including boiler blow-down pits; utility/transformer vaults, hot water washdown collection sumps and transfer, and steam condensate sump pits

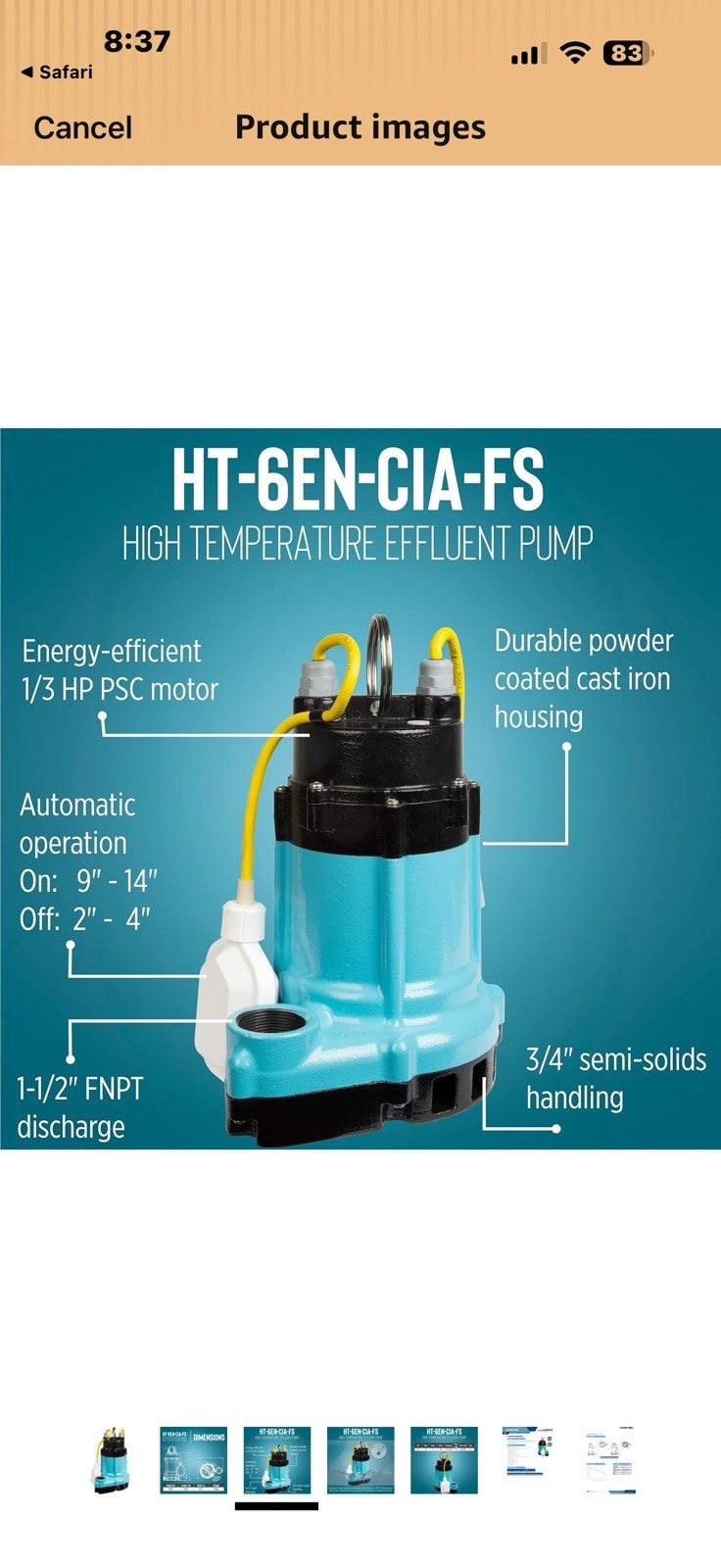

BUILT TO LAST: epoxy-coated cast iron housing and volute; non-clog high-temperature nylon impeller with threaded brass insert; steel shaft; rated for continuous duty

ENERGY-EFFICIENT MOTOR: 115 Volt, 60 Hz, oil-filled, thermally protected Permanent Split Capacitor (PSC) motor; 6.5 running Amps, 21 starting Amps; 650 Watts; CSA listed in the USA and Canada

AUTOMATIC HIGH TEMPERATURE EFFLUENT PUMP: handles up to 200°F liquids and semi-solids up to 3/4-inches in diameter; pump starts when liquid reaches 9 to 14 inches; shuts off at 2 to 4 inches

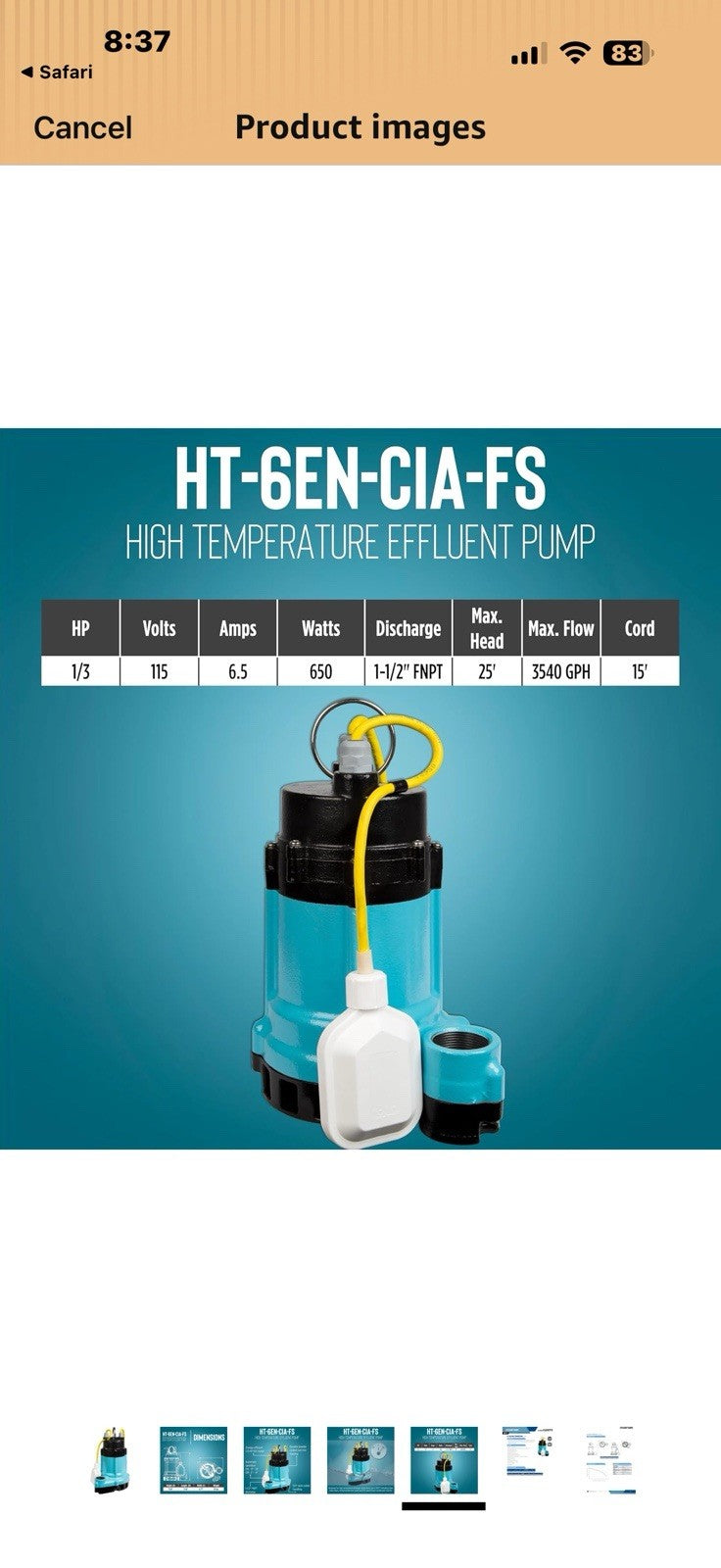

SPECIFICATIONS: 115 Volts; 60 Hz; 1/3 HP; 6.5 running Amps; 21 starting Amps; 650 Watts, 3540 GPH at 5-ft. lift; 25-ft. shut-off; maximum 10.8 PSI, 15-ft. cord; 39 lbs.

Features & Specs

Power Source Corded Electric

Flow Rate 59 Gallons Per Minute

Maximum Lifting Height 25 Feet

Style

Color Blue

Product Style Mechanical float switch, 15-ft. cord

Measurements

Item Dimensions L x W x H 9.56"L x 6.77"W x 11.16"H

Item Weight 37 Pounds

Additional details

Material Type Cast Iron
